Portable Foam Unit

Portable Foam Unit - Industrial Cleaning Solution for Food & Processing Facilities

With compressed air power, our Portable Foam Unit works like a professional. This small device, which was designed by the Homey Wonbond Biotechnology Group with 18 years of experience, can produce 190L/min of foam at a maximum pressure of 0.8MPa. The foam can be projected 3–5 meters for complete covering. With a 15-meter food-grade line that weighs only 28 kg, it is both light and strong enough for commercial use. The new small-aperture nozzle technology saves water while still cleaning very well. This makes it great for places like food processing plants, slaughterhouses, and business kitchens where cleanliness is very important.

Key Features & Benefits

Compressed Air Operation

There's no need for a power link. The unit is powered by your building's current compressed air system. This keeps electrical risks from happening in wet areas.

High-Performance Foam Generation

With 190L/min of foam output and tubes with 8mm holes, you get rich, uniform foam that sticks to surfaces longer for better degreasing and emulsifying.

Extended Reach Coverage

With the 3–5 metre projection range, you can clean high walls, ceilings and equipment that is hard to get to without using steps or scaffolds.

Water-Saving Technology

Our system employs small-aperture nozzles combined with high-pressure technology to significantly reduce water consumption while delivering powerful cleaning results. This translates to lower energy costs and enhanced environmental performance.

True Portability

With its small size (580 x 430 x 1080 mm) and weight of 28 kg, this foam unit is easy for one user to move from cleaning area to cleaning area during their shift.

Food-Grade Components

It is safe for food to come into direct contact with the 15m hose, which is perfect for machine parts and areas that food touches.

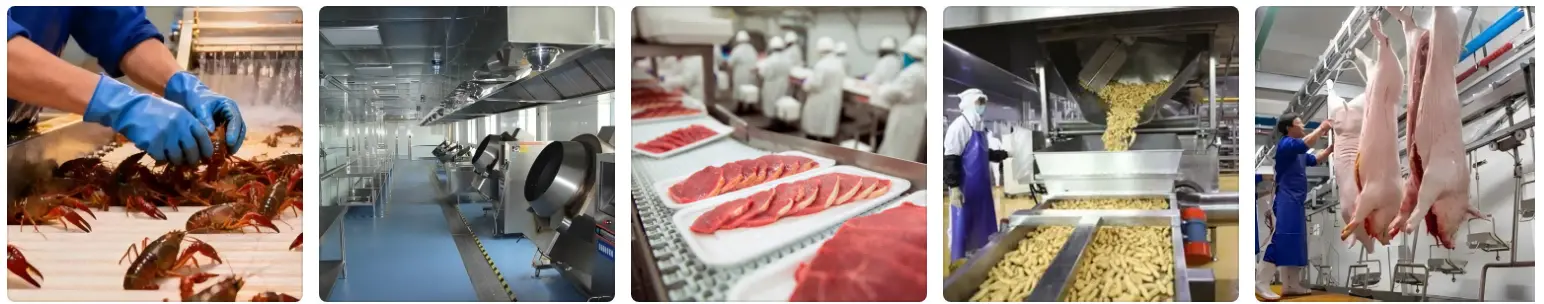

Application Scenarios

Food Processing Plants

Clean conveyor systems, mixing equipment, and production lines efficiently. The foam penetrates complex machinery parts where manual scrubbing struggles.

Slaughterhouses & Meat Processing

Remove blood, protein, and fat residues from cutting tables, hooks, and floor drains. The powerful emulsifying action breaks down organic matter quickly.

Central Kitchens

Maintain hygiene standards across large cooking equipment, storage areas, and preparation zones. The mobility allows staff to address spills and buildup immediately.

Seafood Processing Facilities

Eliminate fish oils and organic residues that cause odors and bacterial growth. The foam's clinging action ensures thorough coverage on stainless steel surfaces.

Dairy Operations

Pre-rinse tanks, pipes, and filling equipment before CIP cycles. The Portable Foam Unit reduces overall cleaning time and chemical usage.

Product Structure

This foam unit integrates professional-grade components designed for daily industrial use:

• Stainless steel chemical tank with transparent level indicator
• High-pressure foam nozzle with adjustable foam density control
• Air-driven pump system (190L/min flow rate)
• 15-meter food-grade reinforced hose with ergonomic foam lance
• Heavy-duty wheeled base for smooth transport across wet floors
• Quick-connect fittings for fast setup and chemical refilling

The unit operates on compressed air at 0.8MPa maximum pressure, drawing from your facility's existing air supply through standard connectors.

Technical Specifications

Why Choose Our Portable Foam Unit?

18 Years of Industry Expertise

Homey Wonbond has been solving real-world cleaning challenges since 2011. We understand the hygiene demands of food processing and the operational constraints you face.

Integrated Solution Provider

We don't just sell equipment. Our team provides matching food-grade cleaning chemicals, application training, and ongoing technical support.

Fast Delivery & Customization

Standard units ship from stock. Need specific hose lengths, custom colors, or specialized nozzles? We deliver customized equipment in 14 working days.

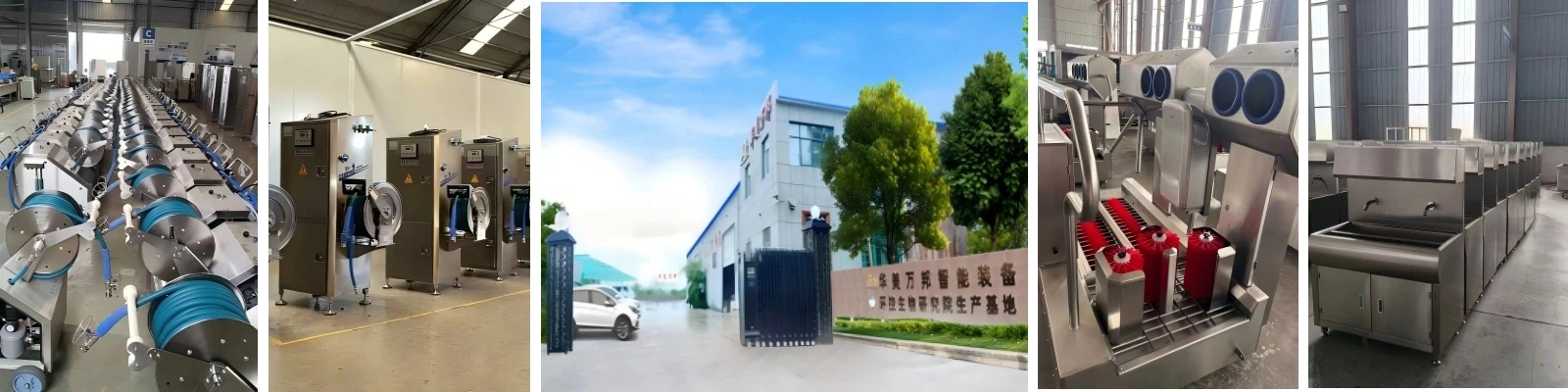

Quality Manufacturing

Built in our CE-certified facility using REACH-compliant materials. Every unit undergoes pressure testing and performance verification before shipping.

Cost-Effective Operation

The water-saving design and durable construction deliver lower total cost of ownership compared to electric foam units requiring maintenance and electrical safety protocols.

Proven Performance

Our foam systems serve food processors, pharmaceutical facilities, and commercial kitchens globally—environments where cleaning failures have serious consequences.

Quality & Certification

• CE Certification for equipment safety standards
• REACH Compliance for chemical components
• ISO-Based Quality Management across production
• Food-Grade Materials in all fluid-contact parts
• Full Documentation provided for regulatory audits

Every unit comes with operation manuals, maintenance guides, and compliance certificates to support your facility inspections.

FAQ

Q: Do foam units need electricity?

A: No power required. It uses only compressed air from your facility's air compressor system, making it safer in damp settings.

Q: How far does foam spray?

A: Depending on air pressure, you can clean high walls and equipment without platforms from 3-5 meters away.

Q: Can I use my own cleaning chemicals?

A: The device works with most foam-compatible detergents. However, we propose our food-grade formulas optimised for foam formation in this system.

Q: How much compressed air pressure do I need?

A: For best foam generation and projection distance, the machine needs 6-8 bar (0.6-0.8MPa) air with 190L/min flow capacity.

Q: Does customisation for facility needs exist?

A: Yes. In 14 days, we produce bespoke hose lengths, nozzle configurations, tank capacity, and colour labelling to meet your operating needs.
