High Pressure Rinse System: How to Improve Hygiene Efficiency

Improving hygiene efficiency starts with choosing the right cleaning technology. A high pressure rinse system delivers automated, five-stage cleaning—rinsing, foam application, rinsing, and spray disinfection, rinsing—that removes contaminants faster and more consistently than manual methods. These systems operate at customizable pressures between 25 and 100 bar, integrating water, chemicals, and compressed air at automated substations to ensure uniform results across every shift while reducing water consumption by up to 75% compared to traditional cleaning approaches.

Understanding High Pressure Rinse Systems and Their Hygiene Benefits

These days, industrial hygiene requires more than just scrubbing by hand and hosing things down. Regulatory bodies like HACCP, ISO, and REACH need cleaning methods that can be checked and used again and again, which can't be done by hand. This problem can be fixed with automated high-pressure rinse systems, which combine mechanical force with precise chemical doses and controlled water application.

How High Pressure Cleaning Technology Works

A well-designed assembly is at the heart of every system that works: large pumps maintain a steady water pressure, precise nozzles create fine spray patterns for maximum surface contact, and smart control units adjust flow rates and chemical ratios in real time. Food-grade hoses carry the water to substations carefully placed across your building. There, it mixes automatically with cleaning agents and compressed air before getting to the spray gun. This combination takes away the need to guess and makes sure that all operators, no matter how experienced they are, get the same result.

Key Components That Drive Performance

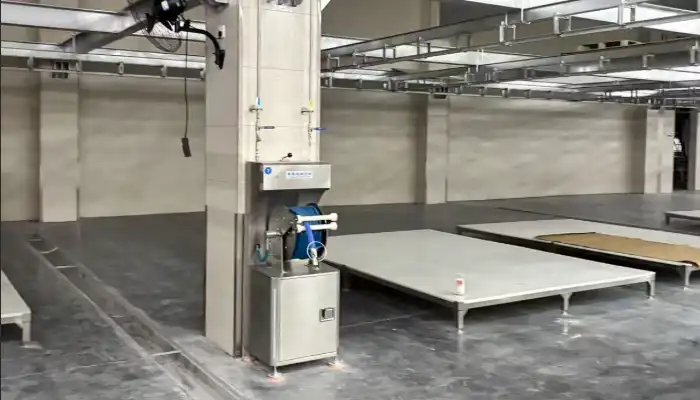

The high pressure rinse system tri-function station is the brain of the operation. It is a small unit that does three things: supplies water, doses chemicals, and injects dilution. Hose reels keep lines in order and make them easy to withdraw. This keeps people from tripping and makes hoses last longer. Spray guns have pressure-sensitive adjustable buttons that let users change the force of the spray without having to go back to the main panel. Different tools can be quickly switched out to do different jobs, such as foaming attachments for vertical surfaces, wide fan patterns for floors, and concentrated jets for equipment cracks. The central control unit keeps an eye on the system's pressure, keeps track of how much chemical is used, and logs information about usage to help with auditing and planning preventative maintenance.

Measurable Hygiene and Operational Gains

When places switch from cleaning by hand to automated high-pressure rinse systems, they notice big improvements. Because small-aperture valves focus force instead of volume, less water is used. The amount of chemical trash goes down because only the right amount is used in each zone. The cost of labor goes down because now two workers can do the work of five. The number of audits that pass goes up because cleaning procedures become uniform and easy to track. As biofilms and organic leftovers are physically stripped away at the microscopic level, contamination rates go down. This makes surfaces truly sanitized instead of just washed.

Identifying and Overcoming Common Challenges in High Pressure Rinse Systems

There is friction in the workings of even the most advanced cleaning equipment. Finding problems early on and putting structured solutions in place keeps systems running smoothly and increases the life of equipment.

Nozzle Clogging and Pressure Fluctuations

Chemical precipitates, particulate matter, and mineral deposits from hard water can block nozzle orifices, making the spray less effective and covering unevenly. Most of the time, unstable pressure is caused by air pockets in supply lines, worn pump seals, or changing water pressure in cities. Every two weeks, the tip should be taken apart and cleaned with ultrasonic waves as part of regular checks. Putting inline screens in front of substations stops trash from getting to important parts. At each center, pressure gauges give workers real-time feedback when there are drops in pressure that could mean that there are blockages or leaks.

Chemical Handling and Dosing Accuracy

When you mix something by hand, there is a chance that too little or too much of a chemical will leave behind residues or damage the surface in a high pressure rinse system. This can be fixed with automated dose systems, but they need to be calibrated and watched over. Pumps can become out of range over time, and the thickness of chemicals changes as the temperature changes. Graduated cylinders are used to make sure that dosing ratios are still matching setpoints every month. Temperature-compensated flow meters take into account changes in viscosity, so they stay accurate even when the weather changes. Chemical tanks should have clear labels, and hose connections should be color-coded to stop cross-contamination and operator error.

Maintenance Protocols That Prevent Downtime

It costs more and takes more time to do reactive maintenance. Protocols for prevention make sure that equipment is ready to use when you need it. Every day, chores include checking the hose for wear and the spray pattern to make sure the tip is still working properly. Lubricating pump parts and hose reel mechanisms once a week keeps them from breaking down too soon. Leaks are caught early by checking the seals and testing the pressure every month. Deep cleaning chemical tanks and supply lines every three months keeps building from happening. When parts do break, downtime is kept to a minimum by working with suppliers who sell spare parts nearby and offer expert help 24 hours a day, seven days a week.

How to Optimize High Pressure Rinse Systems to Maximize Hygiene Efficiency

It's not as important how fast the system is as how well you can customize it to your needs. Optimization takes good cleaning and turns it into great results while cutting costs.

Performance Assessment Through Data-Driven Metrics

First, find out what the average result is. Keep track of how much water and chemicals are used per cleaning cycle, how many hours of work are done per shift, and the report results from the last quarter. Find the places where cleaning takes the most time or doesn't work very well. Use water-sensitive paper to make a map of the spray coverage to find blind spots and overlap. Logs of pressure data show times when PSI falls below useful levels. ATP swab tests measure the number of microbes left behind after cleaning, giving you a score that you can use to make changes.

Nozzle Selection and Positioning Strategy

It makes a big difference to match the type of nozzle to the surface properties. When you have open floors or walls, flat fan nozzles cover them evenly. Patterns that look like cones go through corners and hidden places. When you scrub baked-on leftovers, rotating tools do a great job. Putting substations within 50 feet of cleaning zones shortens the length of the hoses and keeps the pressure at the gun steady. By putting spray guns on conveyors, repetitive jobs can be done automatically, freeing up workers to do more detailed work. With adjustable brackets, you can move nozzles around as the layout of your production changes, so you don't have to pay for expensive repiping.

Pressure and Flow Rate Calibration

It's not always better to have more pressure in a high pressure rinse system. When you use too much force, you can damage gaskets, splash dirty surfaces with dirt, and make aerosols that spread germs. Calibration equalizes the power of mechanical cleaning with the compatibility of the surface. Some delicate equipment may need 20 to 30 bar, while floors that are very dirty can handle 80 to 100 bar. Changes in pressure are paired with changes in flow rate; lower flow at higher pressure saves water while keeping the impact force the same. Real-time tracking systems let managers know right away when parameters move out of acceptable ranges, so problems can be fixed before they get worse.

Lean Methodologies and Continuous Improvement

Standardized work instructions stop operators from being able to do things differently. At substations, there are posters that show the right spray angles, stay times, and rinse routines. Digital work order systems have built-in checklists that make sure no steps are missed. Cross-training makes people more reliable so that absences don't affect hygiene. Regular team reviews of cleaning results help frontline staff take responsibility and come up with ways to make things better. Writing down changes and what happened as a result improves institutional knowledge and helps with compliance paperwork during checks.

Selecting the Right High Pressure Rinse System for Your Industry Needs

Buying things depends on how well the technical abilities match up with the needs of operations and the rules set by regulators. Mismatches cause things to not work right or cost too much for features that aren't needed.

Matching System Specifications to Hygiene Requirements

Food makers who work with raw chicken have to deal with more bioburden than beverage bottlers, which means they need to use stronger chemicals and more pressure. Pharmaceutical cleanrooms need water that is very pure and cleaning protocols that have been tested and are able to keep track of every parameter. Systems that can handle blood, fat, and protein waste without getting clogged are needed in slaughterhouses. In central kitchens, getting back to work quickly between production runs is very important. Find the area with the most dirt, the strictest rules, and the smallest time for cleaning. Specifications should be 15-20% higher than the minimum standards to account for variations and for future production rises.

Energy Efficiency and Total Cost of Ownership

The cost of ownership is much higher than the price paid for it. Energy-efficient motors and pumps use less electricity. Nozzles that use less water and recycling systems lower the cost of utilities. In corrosive environments, stainless steel construction lasts longer than coated mild steel. Modular designs let you add on in small steps without having to replace the main equipment. Find the total cost of purchase over ten years, taking into account repairs, upkeep, labor, and downtime. Within two years, a system that costs 30% more up front but saves 40% a year on running costs pays for itself.

Evaluating Suppliers and Support Infrastructure

Quality equipment like a high pressure rinse system doesn't mean much if you can't get technical help when you need it. For 18 years, Homey Wonbond has been making hygiene solutions for industries that have to follow rules. Standard versions of our systems can be sent out right away, while unique builds take only 14 business days to deliver. CE certification proves that the equipment is safe, and chemicals that are REACH-compliant meet global standards. Commissioning goes smoothly thanks to remote guidance, on-site installation, and training for the operators. You can call our support line at any time, day or night, and talk to engineers who understand the pressures of production and the rules you have to follow.

Scalability and Future-Proofing Your Investment

As your business grows, you shouldn't have to replace all of your cleaning equipment. When production areas get bigger, modular devices let you add more substations. For centralized tracking, digital control systems work with software for managing facilities. Automated hose reels and robotic spray arms can be added to frameworks that are already in place. If you choose a provider that offers a wide range of products, such as chemicals, tools, and extras, it will be easier to buy things in the future and the parts will still work together as your needs change.

Future Trends and Innovations in High Pressure Rinse Systems

Industrial hygiene is changing because of new technologies and changes in the rules. Keeping up with the news helps you plan for changes and make smart investments.

Automation and Smart Sensor Integration

Cleaning cycles that are programmed to happen at certain times based on production schedules replace manual work. Soil levels are measured by sensors, and chemical treatment is changed on the fly. Machine learning systems look at data about cleaning to figure out the best plans and spot problems before they become problems. Managers can check on the cleanliness of the whole building from any device with a remote screen, and they will get alerts when certain factors go above or below certain levels. These smart systems cut down on the need for workers and automatically create documents that are ready for audits.

Water Recycling and Eco-Conscious Chemistry

Environmental laws and a lack of water make closed-loop devices in a high pressure rinse system that clean, treat, and reuse rinse water more popular. Solids are removed by multistage filtration, and microbes are killed by UV sterilization and ozone treatment. This means that the water can be used again without losing its cleanliness. Harsh solvents and phosphates are replaced in green chemistry formulas with nontoxic ones that work just as well. Concentrate delivery systems make sure that dilution ratios are always the same while cutting down on packaging waste and freight costs.

Conclusion

When you switch to an automatic high pressure rinse system, hygiene goes from being a hard job that needs a lot of work to a controlled, observable process that meets regulations and protects your brand's image. The right method cuts down on wasteful use of water and chemicals, on the cost of labor, and on getting reliable results that can stand up to even the strictest audits. To be successful, you need to make sure that the specs of your equipment fit your specific production setting, that you follow structured repair routines, and that you work with experienced suppliers who offer ongoing technical support. If you buy modern cleaning equipment, your building will be more efficient and meet compliance standards for a long time.

FAQ

1. What Pressure Range Is Most Effective for Food Processing Plants?

Between 40 and 80 bar is the best range for most food processing uses. Lower pressures (20–30 bar) are good for delicate equipment and light soiling. Higher pressures (80–100 bar) are better for heavy organic residues like fats and proteins found in meat or seafood plants. Our systems have fully adjustable pressure settings, so you can find the right amount of force for each area without damaging the equipment or not cleaning well enough.

2. How Does Automated Chemical Dosing Improve Safety and Compliance?

When workers mix chemicals by hand, they are exposed to concentrated chemicals and can make mistakes with the dosage that make cleaning less effective or waste expensive products. At substations, automated systems use set ratios to measure and mix chemicals, so there is no need for guesswork or direct handling. Digital logs keep track of every dose and provide audit-ready proof of HACCP and ISO compliance while lowering the risk of injuries at work.

3. Can Existing Facilities Retrofit High Pressure Rinse Systems Without Major Downtime?

Of course. Because they are modular, installations can be done in stages that fit around production plans. We make a layout map of your building, figure out where the best substations should be placed, and install supply lines during off-shifts or maintenance windows. Quick-connect fittings and parts that are already put together cut down on installation time. Many clients finish full retrofits in less than two weeks, which has no effect on their daily business.

Partner with Homey Wonbond for Complete High Pressure Rinse System Solutions

Since 2011, our team has designed and built automatic cleaning systems for slaughterhouses, food processing plants, central kitchens, and drug factories. We make sure that the setups of our high pressure rinse systems are exactly what you need, whether you're replacing old equipment or planning a whole new plant. Every part, from food-grade tubes and specialty nozzles to three-function substations, is made to ISO standards and is approved for use in all markets around the world. As a reliable high-pressure rinse system supplier, we offer full project support, including remote consultations, CAD layout planning, installation on-site, and training for operators. Email frank@hmwbcleaning.com to talk about your hygiene problems and get a custom proposal that will help you save money and work more efficiently.

References

1. Schmidt, R. H., & Erickson, D. J. (2019). Sanitation in Food Processing Facilities: Principles and Best Practices. Academic Press.

2. Marriott, N. G., Schilling, M. W., & Gravani, R. B. (2018). Principles of Food Sanitation (6th ed.). Springer International Publishing.

3. Holah, J. T., & Lelieveld, H. L. M. (2020). Hygiene in Food Processing: Cleaning, Disinfection, and Sanitation Strategies. Woodhead Publishing Series in Food Science, Technology and Nutrition.

4. European Hygienic Engineering & Design Group (2021). Guidelines for Hygienic Equipment Design Criteria (3rd ed.). Trends in Food Science & Technology.

5. Keener, L., & Bastin, B. (2022). High-Pressure Water Systems for Industrial Sanitation: Engineering and Operational Considerations. Journal of Food Protection, 85(4), 623-635.

6. International Association for Food Protection (2023). Advanced Cleaning Technologies in Regulated Food Environments: A Technical Review. IAFP Annual Symposium Proceedings.
